Hot Rolled Steel Metal Slitting Machine , Steel Slitting Equipment Automatically

Name: Hot Rolled Steel Metal Slitting Machine Steel Slitting Equipment Automatically
Brand: Saibo
Price: 1 USD

Buy cheap Hot Rolled Steel Metal Slitting Machine , Steel Slitting Equipment Automatically product

Brand Name : Saibo

Model Number : 4-10X2500mm

Certification : CE/IS09001/SGS

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 380 sets per year

Delivery Time : 100 working days after received deposit

Packaging Details : Suitable for ocean shipment

Product Name : Steel Coil Slitting Machine

Steel thickness : 4-10mm

Coil material : Hot rolled steel

Steel width : 800~2500mm

Knife pivot diameter : φ300mm

Blade hardness : HRC58°—60°

Blade specification : φ300×φ480×30

Blade Material : 9SiCr

Slit width(Min) : 150mm

Slitting speed : 0-30m/min

Contact Now

Steel Coil Slitting Machine

I. Main technical parameters

1.	Material	Hot rolled steel
2.	Steel thickness	4~10mm
3.	Steel width	800~2500mm
4.	Coil O.D	1000~2100mm
5.	Coil I.D	500~800mm
6.	Steel weight	35T
7.	Knife pivot diameter	φ300mm
8.	Blade hardness	HRC58°—60°
9.	Blade specification	φ300×φ480×30
10.	Blade Material	9SiCr
11.	Slit quantity	10pcs for 4-6mm, 6-8pcs for7-8mm,5pcs for 8-10mm
12.	Slitting width precision	±0.10mm
13.	Slit width(Min)	150mm
14.	Slitting speed	0-30m/min
15.	Scrap winder width	≥1.5 times of thick
16.	Recoiler I.D	φ610mm

II. Overflow

Hot Rolled Steel Metal Slitting Machine , Steel Slitting Equipment Automatically

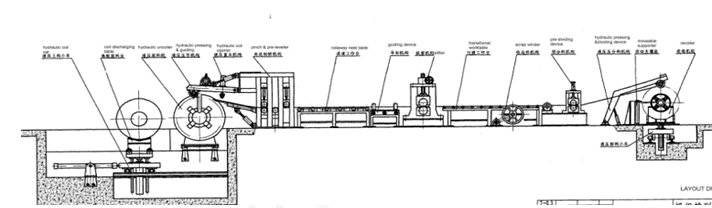

From right to left are: Entry coil car→Decoiler →Press and pinch device→Side guide device→ Slitter→Scrap winder→Transition table 2→Tension stand →Recoielr→Exit coil car→Packing

III. Composed device

NO	Name	Quantity
1	V-Shaped saddle	2 units
2	Hydraulic entry car	1 unit
3	Decoiler	1 pair
4	Press and pinch device	1 unit
5	Transition table 1	1 unit
6	Side guide device	1 unit
7	Slitter	1 unit
8	Scrap winder	1 unit
9	Transition table 2	1 unit
10	Tension stand	1 unit
11	Recoiler	1 unit
12	Hydraulic exit car	1 unit
13	Hydraulic system	1 set
14	Electrical system	1 set

Product Tags:

Coil Cutting Machine

Metal Slitting Machine

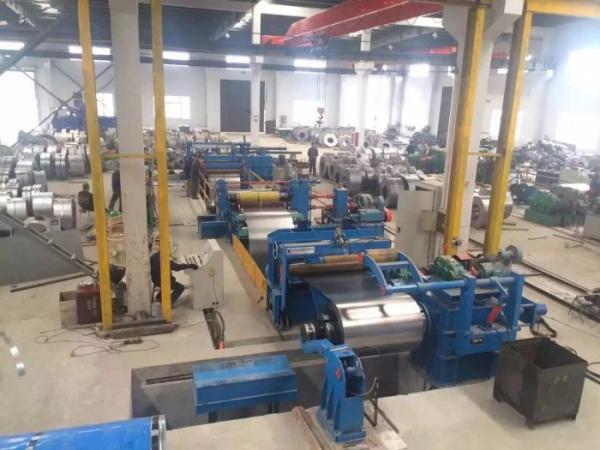

Hot Rolled Steel Metal Slitting Machine , Steel Slitting Equipment Automatically Images
