30 Stations Gi Sheet Metal Roll Forming Machines With 10T Hydraulic Decoiler

Name: 30 Stations Gi Sheet Metal Roll Forming Machines With 10T Hydraulic Decoiler
Brand: Saibo
Price: 1 USD

Buy cheap 30 Stations Gi Sheet Metal Roll Forming Machines With 10T Hydraulic Decoiler product

Brand Name : Saibo

Model Number : YX208.5

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 300 sets per year

Delivery Time : 70 working days after received deposit

Packaging Details : Suitable for ocean shipment

Product Name : Floor Deck Roll Forming Machine

Main Motor Power : 22KW x2

Hydraulic power : 7.5KW

Steel thickness : 0.8-1.5mm

Decoiler : 10Y hydraulic

Station : About 30 stations include embossing stations

Roller material : ASTM1045 chrome plated surface with hardness, CNC

Drive : By chain, 1.2 inch, double line

Contact Now

1. Components of machine:

1. 10t Hydraulic Decoiler	1set
2. Main roll forming machine	1set
3. Hydraulic cutting system	1set
4. Controlling system	1set
5. Run out table	2sets

2. Specification of the material

1	Suitable Material	Gi, 340-550Mpa
2	Width of the raw material	1060mm
3	Thickness	0.8mm-1.5mm

3. Machine Detailed Parameters

1	Roll Forming Machine	YX208.5
2	Machine structure	Wall board structure
3	Total power	Motor power-22kw x2 Hydraulic power-7.5kw
4	Roller stations	About 30 stations include embossing stations
5	Productivity	0-15m/min
6	Drive system	By chain, 1.2 inch, double line
7	Diameter of shaft	￠90mm solid shaft
8	Voltage	380V 50Hz 3phases (Customized)
9	Color Of The Machine	Yellow and blue
10	Deliver Time	70 days
11	Terms Of Payment	30%T/T 70% pay before shipment

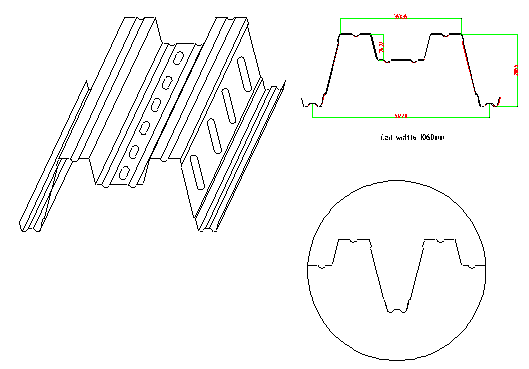

4. Profile drawing

30 Stations Gi Sheet Metal Roll Forming Machines With 10T Hydraulic Decoiler

5. The Chart of Process Flow

30 Stations Gi Sheet Metal Roll Forming Machines With 10T Hydraulic Decoiler

6. Specification of Components

(1) 10T Hydraulic Un-coiler with Coil Car

Steel coil width: maximal 1250mm
Internal diameter of coil: variable,508 mm
Maximal out diameter:1600mm
Maximum coil weight: 10000 Kg;
Coil placement in the coil holder: hydraulic hoist;
Working speed: 0-15m/min adjustable
Main motor power: 7.5KW AC motor
Hydraulic power: 5.5kw
Coil car: working journey about 250mm up and down
Power which linked with hydraulic station

(2) Main Roll Forming Machine

Roller material: ASTM1045 chrome plated surface with hardness, CNC
Shaft diameter: ￠90mm material: SAE1045 with quenching and tempering
Main frame by 350H beam welding
Machine structure: wall board

(3) Post cutting system

Cutting after forming: Cut the sheet after roll forming to required length
Uses two hydraulic cylinders for operation.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,7.5KW
Working pressure: 12Mpa adjustable
Length measuring: Automatic encoder length measuring
Tolerance of length: +/- 1.5mm for each piece end product
